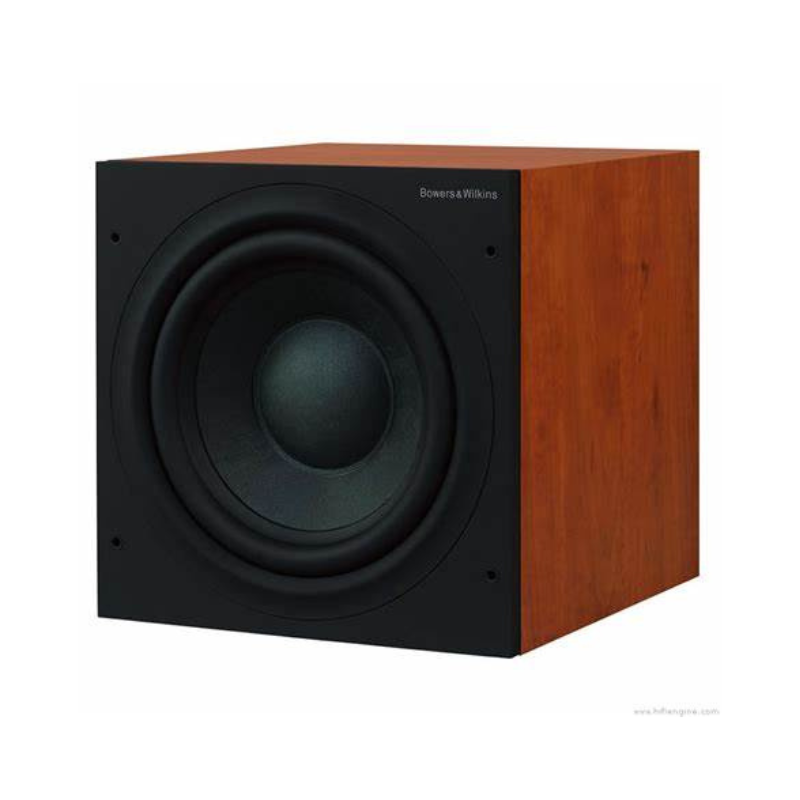

Bowers & Wilkins ASW 610 Active Subwoofer 10" 200W (Each) | Pre-Owned

In all of the 600 Series subwoofers, the bass driver diaphragms are constructed from a rugged, finely-tuned mix of paper pulp, Kevlar® fibres, and resin, which provides the stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet. Ultra-solid construction delivers slamming bass, drum kicks, and special movie effects. Deformation is minimized; bass precision, power, and enjoyment are maximised.

TECHNICAL SPECIFICATIONS

Features

• Input level line in
• Input level speaker in
• Low-pass filter bypass
• Bass extension
• Bass roll-off alignment
• Auto sense on / standby
• Phase switch

Description – Active closed-box subwoofer system

Drive unit – ø250mm 10 in paper / Aramid fiber cone long-throw

Frequency range – -6dB at 20Hz and 25 / 140Hz adjustable EQ at A

Frequency response – ±3dB 27Hz – 40 / 140Hz adjustable EQ at A

Bass extension

• -6dB at 20Hz position A
• -6dB at 25Hz position B
• -6dB at 30Hz position C

Power output – 200W

Rated power consumption – 40W / 0.5W standby

Input impedance – 33kΩ

Signal / noise – >90dB

Inputs

• Line in RCA Phono
• Speaker in Binding post
• 12v trigger 3.5mm jack
• Low-pass filter
• Active 4th-order, variable cut-off frequency

Dimensions

• Height: 310mm 12.2 in not including feet or spikes
• 322mm 12.7in including feet
• 338mm 13.3in including spikes
• Width: 310mm 12.2 in
• Depth: 347mm 13.66in not including grilles
• 375mm 14.8 in including grilles and controls

Net weight – 12.5kg 27.6 lb
