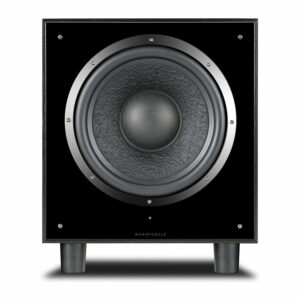

Wharfedale SW-12 – 12 Active Subwoofer 300W | Display Unit

The new range of SW subwoofers comes with a host of new features. They now come with Non-pressed paper cones for increase self-damping, improved transient impact and intern increased the structural rigidity of the cone itself. The centre vents are copper lined to reduce the magnetic distortion and improve the heat dissipation.

Still utilising the solid, well-engineered power amplifiers the SW subwoofers are optimised for high impact at low frequencies and are ideal for movies or music. With the various finishes to the cabinets – Rosewood /Walnut Pearl/White sandex/Blackwood Vinyl with Hi-gloss baffle – these subwoofers look great with matching floorstanding speakers.

Technical Data

Description/Format – Active Dynamic-Drive IB subwoofer system

Drive Units – 1 x 12”300mm cone long-throw

Frequency Response – 35- 120Hz ±3dB

Amplifier Power Output – 300W

Peak Power Output – 450W

Line Input Sensitivity – 200mv for maximum output

Crossover Range – 30 – 150Hz

Inputs –

“Stereo Line In 2 x RCA Phono

Mono LFE Line In RCA Phono

Input Impedance –

Line Input 10kΩ

LFE 5kΩ

Signal-to-noise ratio S/N – ≥85dB

Avg. Max Output @1m – 118dB

Features – Phase inversion, Auto on-off

Dimensions –

Height: 430+58mmwith feet

Width: 395mm

Depth: 442+15mm

Net weight – 22.1kg
